CUT&Tag Chromatin Epigenetic Modification Assay

CUT&Tag Chromatin Epigenetic Modification Assay

1. Background

In epigenetic research, the precise identification of chromatin modification sites has become a key technological foundation for unraveling the mechanisms of gene expression regulation. As an important tool for analyzing histone modifications, transcription factor binding sites, and exploring the principles of epigenetic regulation, CUT&Tag technology can systematically capture protein-DNA interaction information with a level of sensitivity and resolution that conventional ChIP-seq methods often struggle to achieve. This provides a solid scientific basis for in-depth interpretation of gene transcription regulatory networks and chromatin dynamics.

The pA/G-Tn5 fusion protein is the core of CUT&Tag technology. It can bind to specific antibodies via Protein A/Protein G, precisely localizing the Tn5 transposase to the target protein binding sites. Upon activation by Mg²⁺, the Tn5 transposase cleaves the DNA at the target site and simultaneously inserts adapters for sequencing, enabling high-precision labeling and capture of specific histone modifications or transcription factor binding sites.

Compared to traditional ChIP-seq, CUT&Tag offers significant advantages, including extremely low sample input requirements (as low as 1,000 cells), low background noise, high resolution, and a streamlined workflow. It has become the preferred method for studying epigenetic regulatory mechanisms.

Leveraging mature pA/G-Tn5 fusion protein technology and optimized experimental protocols, our team has meticulously designed a comprehensive solution encompassing analyses of various histone modifications and transcription factors. This solution is applicable to diverse research areas such as stem cell research, developmental biology, and tumor epigenetics.

Our provided CUT&Tag detection service offers an end-to-end solution, covering the entire process from sample processing and antibody incubation to pA/G-Tn5 labeling and data analysis. By precisely mapping chromatin modification sites to reveal the molecular mechanisms of gene regulation, we provide researchers with critical data support for a deeper understanding of epigenetic regulatory networks.

2. Principle

CUT&Tag (Cleavage Under Targets and Tagmentation) technology precisely localizes histone modification sites in situbased on specific antibodies and the pA/G-Tn5 fusion protein:

(1) Cell/Nucleus Fixation: Intact cells or isolated nuclei are immobilized on ConA-coated magnetic beads, preserving the native chromatin structure.

(2) Specific Antibody Binding: The primary antibody specifically recognizes and binds to the target protein (e.g., histone modifications like H3K4me3, H3K27me3, or a transcription factor).

(3) Targeted Localization by pA/G-Tn5: The pA/G-Tn5 fusion protein binds to the Fc region of the primary antibody via its Protein A/Protein G moiety, precisely positioning the Tn5 transposase in proximity to the target protein.

(4) In SituTagmentation: Mg²⁺ is added to activate the Tn5 transposase, which cleaves the DNA around the target protein binding site and simultaneously integrates sequencing adapters.

(5) DNA Extraction and PCR Amplification: The tagged DNA fragments are extracted, and PCR amplification is performed to add the necessary index sequences for sequencing.

(6) High-Throughput Sequencing and Analysis: The amplified DNA library is sequenced, and bioinformatics analysis is performed to identify the precise binding sites of the target protein on the genome.

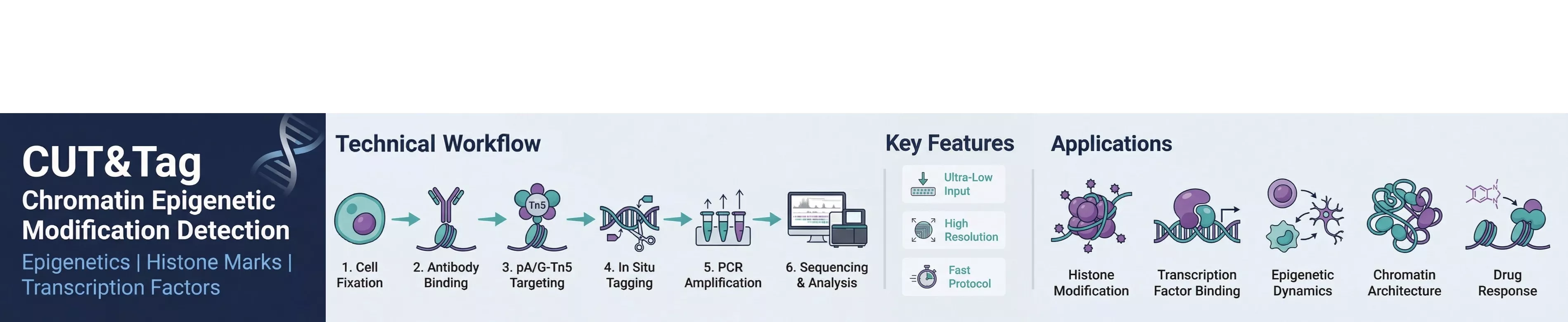

Figure 1. Workflow of CUT&Tag

3. Core Advantages

3.1 Technical Advantages

(1) Ultra-Low Sample Requirement: Requires as few as 1,000 cells, significantly lower than the million-cell level needed for traditional ChIP-seq. Ideal for studies involving rare cells and clinical samples.

(2) Ultra-High Signal-to-Noise Ratio: Direct in situ labeling of target protein binding sites dramatically reduces non-specific background, delivering clearer peak signals.

(3) High Resolution: Achieves base-pair level resolution, allowing precise mapping of protein-DNA interaction sites and identification of key regulatory elements.

(4) Simple and Efficient Workflow: The entire experimental procedure can be completed within a single day, eliminating complex steps like sonication and immunoprecipitation.

(5) Excellent Data Quality: High sequencing data utilization rate with a large proportion of effective sequencing reads, yielding richer, more valuable information.

(6) Standardized and Professional Analysis Pipeline: Offers a comprehensive, standardized CUT&Tag data analysis service. The pipeline encompasses pre-processing (raw data QC, alignment, filtering), core analysis (signal analysis, peak calling, correlation assessment), and downstream analysis (region annotation, transcription factor analysis, functional enrichment). The process is systematic, rigorous, and features layered quality control, ensuring the entire journey from raw data to biological insight is professional, standardized, and traceable.

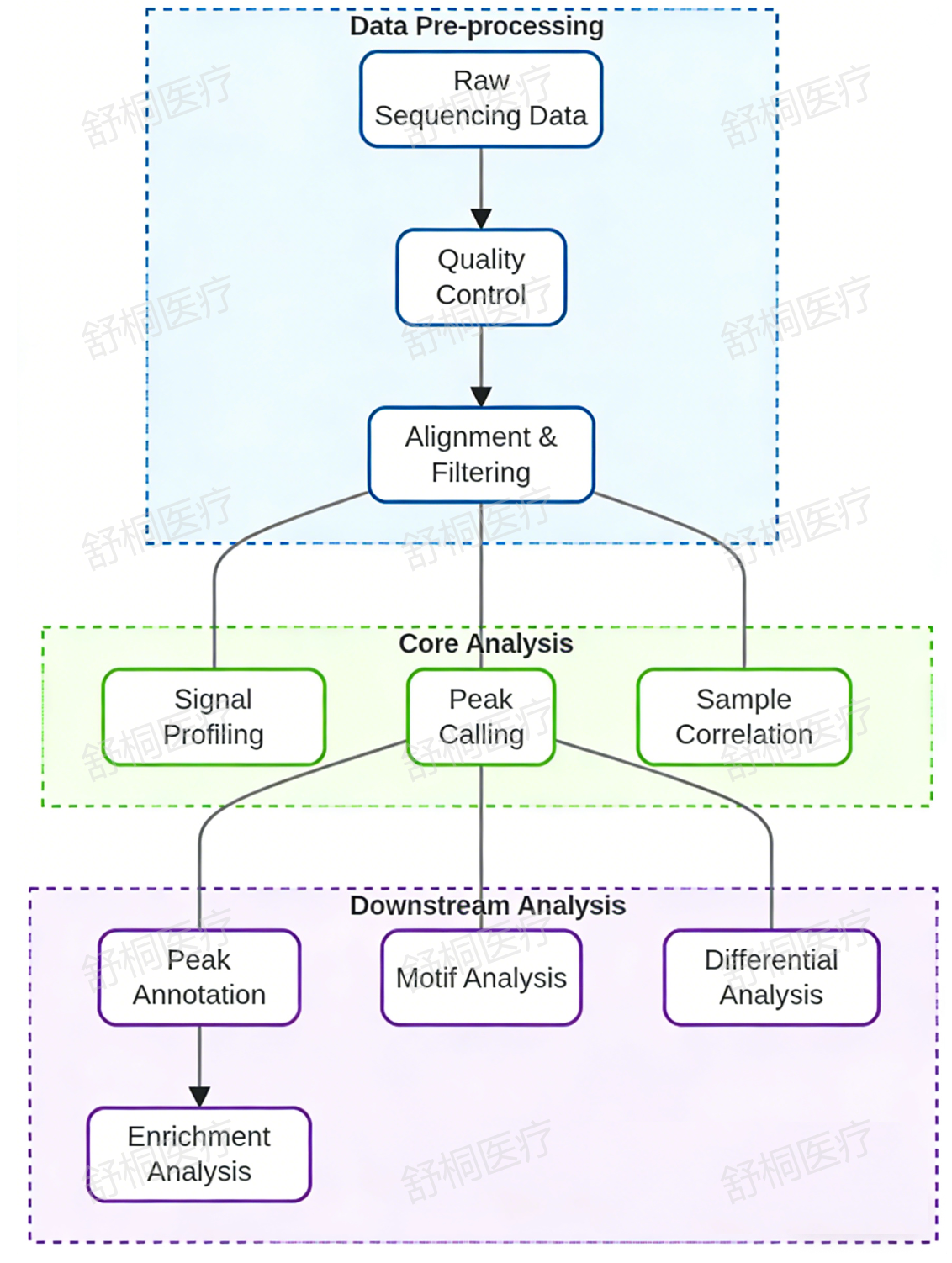

Figure 2. Pipeline of Bioinformatic Analysis

3.2 Service Advantages

(1) Professional pA/G-Tn5 Fusion Protein: Independently developed and produced high-activity pA/G-Tn5 fusion protein ensures highly efficient and specific tagmentation reactions.

(2) Personalized Experimental Design: Tailored optimal experimental protocols based on research objectives and sample characteristics, optimizing conditions for each step.

(3) In-Depth Analysis Capabilities: Professional bioinformatics team provides services ranging from fundamental analysis to in-depth mining with multi-omics integration.

4. Application

(1) Histone Modification Mapping: Precisely locates the distribution of activation-type (e.g., H3K4me3, H3K27ac) and repression-type (e.g., H3K27me3, H3K9me3) histone marks, revealing the relationship between chromatin states and gene expression.

(2) Transcription Factor Binding Site Identification: High-accuracy identification of transcription factor binding sites on the genome, enabling the dissection of gene transcriptional regulatory networks.

(3) Epigenetic Dynamics Studies: Analyzes changes in chromatin modifications during processes like cell differentiation and disease progression, uncovering mechanisms of development and disease.

(4) Chromatin Structure Analysis: Integrates chromatin conformation data to construct three-dimensional epigenomic regulatory networks.

(5) Drug Intervention Effect Evaluation: Detects alterations in chromatin modifications before and after intervention with epigenetic drugs, providing molecular mechanistic evidence for new drug development.

5. Example Report

The CUT&Tag analysis report provided by GeneRulor Technology adopts a standardized format to ensure the professionalism and comprehensiveness of data presentation. The initial section of the report includes an introduction to the project background and technical principles, a description of the library preparation workflow, and an overview of the bioinformatic analysis pipeline, providing clients with the necessary technical context. This is followed by the sample sequencing data statistics section, which details the quality control information and alignment results for each sample, ensuring the reliability of the data quality. In addition, the report contains the following core contents:

(1) Provides detailed coordinate information for chromatin modifications or transcription factor binding to the genome, including chromosomal location (Chr, Start, End), binding region width (Width), DNA strand orientation (Strand), functional region annotation (primarily promoters and introns), and the associated gene identifier (SYMBOL).

Figure 3. Genomic Coordinate Annotation Table of CUT&Tag-seq Chromatin Binding Sites (Partial Display)

(2) Peak statistics results for sample modifications in the CUT&Tag-seq experiment, including the raw peak count (nPeak_all), total length (Total_Len_all), average peak length (Mean_Len_all), the proportion of peaks on the mitochondrial and X chromosomes (chrM% and chrX%), as well as information on filtered peaks such as their count, total length, and average length. These data help clients assess experimental quality and peak characteristics.

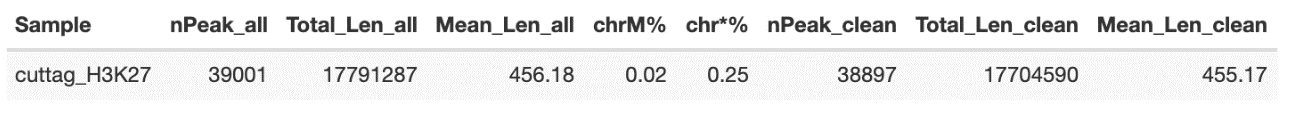

Figure 4. Summary Table of Basic Peak Statistical Results for CUT&Tag-seq Samples

(3) The distribution across genomic functional regions reflects the binding preference of the study subject (e.g., a transcription factor or histone modification) within the genome. Understanding the genomic localization characteristics of the study subject allows for inferences about its potential biological functions and regulatory mechanisms, and provides a basis for subsequent experimental design, such as determining key research regions or comparing distribution pattern changes under different conditions.

Figure 5. Genomic Functional Region Distribution Analysis of H3K27-modified Peaks in CUT&Tag-seq

(4) Target Protein Signal Intensity Analysis in Specific Genomic Regions. This analysis presents a comparative distribution of the target protein's signal intensity within specific genomic regions between the control and treatment groups via a bar chart. The chart reflects the impact of the experimental treatment on the binding or modification level of the target protein in that region, revealing distinct differences in signal intensity. By comparing the two datasets, one can evaluate whether the treatment significantly alters the binding activity of the target protein. This, in turn, allows for inferences about the strength of its regulatory effect on the associated gene, provides quantitative basis for subsequent functional validation experiments, and can also be used to compare dynamic change patterns under different treatment conditions or at different time points.

Figure 6. Comparison of CUT&Tag-seq Target Protein Signal Intensity in the Dusp4 Gene Region (IGV Visualization)

(5) Pathway Enrichment Analysis presents the degree of enrichment for different biological processes or molecular functions. This graph systematically reflects the biological pathways significantly affected under the experimental conditions and their association strength. It aids in understanding the core cellular processes, metabolic pathways, or regulatory networks in which the target protein may be involved. This allows for inferences about its overall functional roles and mechanisms of action, and provides prioritized directions and a theoretical basis for subsequent in-depth validation.

Figure 7. GO Molecular Function (MF) Pathway Enrichment Analysis of CUT&Tag-seq Associated Genes

6. CUT&Tag Detection Service Content

*Service Cycle: The standard process takes 30-40 working days.

7. CUT&Tag Detection Sample Requirements

8.Reference

[1] Kaya-Okur HS, Wu SJ, Codomo CA, et al. CUT&Tag for efficient epigenomic profiling of small samples and single cells. Nat Commun. 2019;10(1):1930. Published 2019 Apr 29. doi:10.1038/s41467-019-09982-5

[2] Kaya-Okur HS, Janssens DH, Henikoff JG, Ahmad K, Henikoff S. Efficient low-cost chromatin profiling with CUT&Tag. Nat Protoc. 2020;15(10):3264-3283. doi:10.1038/s41596-020-0373-x
