ATAC-seq Chromatin Accessibility Assay

ATAC-seq Chromatin Accessibility Assay

1. Background

In the era of epigenetic research, chromatin accessibility assays have become a critical technological pillar for studying gene expression regulation. As a key tool for deciphering transcription factor binding sites, identifying gene regulatory elements, and guiding epigenetic mechanism research, ATAC-seq technology can detect open chromatin regions at a level beyond the sensitivity of conventional histochemical and immunohistochemical methods. It provides a scientific basis for precisely dissecting the mechanisms of gene expression regulation and exploring cell fate determination.

The Tn5 transposase is the core of ATAC-seq technology. It specifically recognizes and cleaves open chromatin regions while simultaneously inserting sequencing adapters. In a normal nucleus, chromatin is tightly and orderly packed. However, in regions of active gene expression, the chromatin structure becomes loose and accessible. These open regions primarily include important regulatory elements such as promoters and enhancers. The Tn5 transposase preferentially acts on these areas, enabling the specific labeling and capture of open chromatin.

Leveraging established Tn5 transposase technology and optimized library preparation protocols, the GeneRulor Technology team has meticulously designed a comprehensive solution for genome-wide open chromatin region analysis, with reference to international research advancements and publications in authoritative journals. This solution is applicable to various research fields including stem cell research, developmental biology, and cancer epigenetics. These key regions participate in the core network of gene expression regulation, and their alterations often lead to changes in cell fate, thereby allowing researchers to interpret biological processes from an epigenetic perspective.

2. Principle

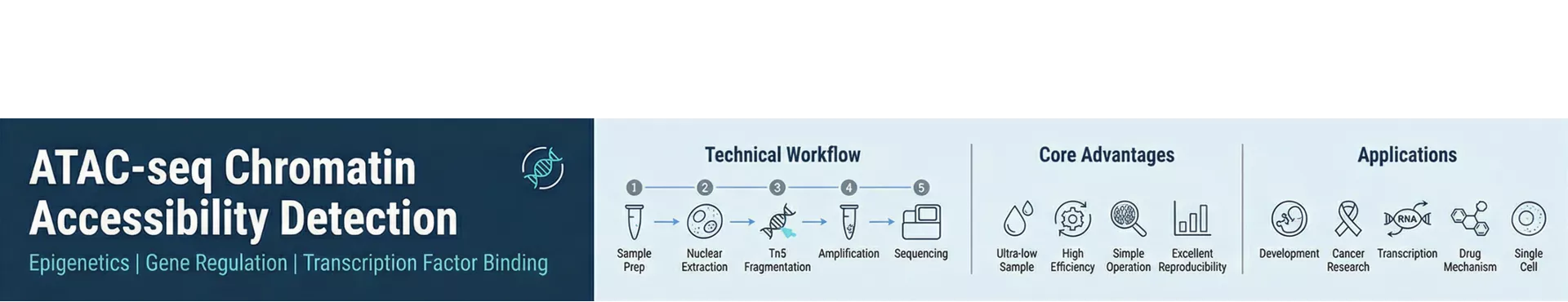

ATAC-seq utilizes the Tn5 transposase to recognize and insert into open chromatin regions, which are typically key sites for gene expression regulation, such as enhancers and promoters. During insertion, the Tn5 transposase simultaneously adds sequencing adapters to the DNA fragments. These adapter-tagged DNA fragments are subsequently used to construct high-throughput sequencing libraries, enabling the identification of open chromatin regions at the genome-wide level. The construction of ATAC-seq libraries involves four main steps (Figure 1):

(1) Prepare a single-cell suspension from the tissue or cells to be examined, isolate nuclei from the cells while preserving chromatin structure and any associated DNA-binding proteins (including nucleosomes and TFs) intact;

(2) Incubate the chromatin with the Tn5 transposase, which, functioning as a dimer, fragments the chromatin and inserts sequences containing sequencing adapters;

(3) The fragmented products containing adapters are amplified for downstream steps using i5/P5 and i7/P7 ATAC-seq adapters;

(4) After quality control, the library fragments are subjected to sequencing and analysis. Genomic regions enriched for Tn5 transposition events are designated as chromatin accessibility regions.

Figure 1. Principle of ATAC-seq

3. Core Advantages

3.1 Technical Advantages

(1) Ultra-Low Sample Input: Requires a minimum of only 500 cells, making it suitable for studying precious samples and rare cell types.

(2) High Efficiency and Speed: Library construction takes only 3-4 hours, significantly faster than the 2-4 day cycle of traditional methods.

(3) Simple Operation: A one-step Tn5 transposase reaction simultaneously completes DNA fragmentation and adapter addition.

(4) High Resolution: Capable of simultaneously detecting transcription factor binding sites and nucleosome positioning, providing comprehensive chromatin structural information.

(5) Excellent Reproducibility: Experimental results are stable and reliable, with low background noise and high data quality.

3.2 Service Advantages

(1) End-to-End Solution: A one-stop service from sample collection to data analysis, seamlessly connecting with user requirements.

(2) Professional Technical Team: Experts with extensive experience provide support for experimental design and data interpretation.

(3) Personalized Analysis: Customized analysis plans based on research needs to maximize the value of the data.

(4) Fast Turnaround Time: Standard service has a short cycle, and expedited service can further shorten the delivery time.

(5) Comprehensive Bioinformatics Analysis: Provides open region identification, annotation, visualization, and various downstream in-depth analyses to support research publication.

4. Application

(1) Development and Differentiation Research: Track the dynamic changes in chromatin structure during embryonic development and stem cell differentiation, revealing the epigenetic mechanisms underlying cell fate determination.

(2) Cancer and Disease Research: Compare differences in chromatin accessibility between normal tissues and pathological states, identifying disease-specific regulatory elements and potential therapeutic targets.

(3) Transcriptional Regulatory Network Construction: Identify key regulatory elements (such as promoters, enhancers) and transcription factor binding sites, and integrate multi-omics data to build comprehensive gene regulatory networks.

(4) Drug Mechanism and Target Discovery: Monitor changes in chromatin openness before and after drug treatment, elucidating drug mechanisms of action and discovering new epigenetic intervention targets.

(5) Single-Cell Heterogeneity Analysis: Combine with single-cell technologies to resolve the epigenetic characteristics of different cell subpopulations within complex tissues and identify key cell types.

5. Example Report

The ATAC-seq analysis report provided by ReneRulor Technology adopts a standardized format, ensuring the professionalism and completeness of data presentation. The initial section of the report includes an introduction to the project background and technical principles, a description of the ATAC-seq library construction process, and an overview of the bioinformatics analysis workflow, providing clients with the necessary technical context. This is followed by the sample sequencing data statistics section, which details the quality control information and alignment results for each sample, ensuring the reliability of the data quality. In addition, the report contains the following core content:

(1) The analysis of signal intensity around Transcription Start Sites (TSS) displays the characteristic distribution of chromatin accessibility near TSS regions. This helps in understanding the overall patterns of gene expression regulation and provides clients with a global view of the activity state in transcription initiation regions.

Figure 2. Transcription Start Site (TSS) Enrichment Signal Analysis of ATAC-seq Samples

(2) A pie chart showing the distribution of peaks across genomic regions illustrates the proportional distribution of chromatin accessible regions in areas such as promoters, enhancers, and introns. This information aids in understanding the functional distribution characteristics of open chromatin and reveals potential regulatory mechanisms.

Figure 3 Genomic Functional Region Distribution Analysis of ATAC-seq Peaks

(3) Transcription factor footprinting analysis displays the protection pattern conferred by transcription factors bound to specific DNA sequences on their surrounding sites. By analyzing the distribution characteristics of insertion site probabilities around motifs, the exact core position and protected region of transcription factor binding can be precisely inferred. This helps postulate the potential mechanisms by which they regulate target gene expression and provides crucial site information for subsequent experiments.

Figure 4. Transcription Factor Binding Motif Footprinting Analysis (TF Footprinting)

(4) Gene functional enrichment analysis displays the enrichment status of genes associated with open chromatin regions in GO and KEGG pathways. This provides clients with insights into the active biological pathways and functions under the research conditions, aiding in the interpretation of the molecular mechanisms underlying phenotypic changes.

Figure 5. KEGG Pathway Enrichment Analysis of Genes Associated with Open Chromatin in ATAC-seq

6. Service Content

*服务周期：标准流程30-40个工作日；

7. Sample Requirements

Notes:

(1) Avoid repeated freeze-thaw cycles of samples;

(2) Avoid over-digestion during cell culture;

(3) Maintain RNase-/DNase-free conditions;

(4) Use DNase-free reagents throughout the entire sample handling process.

8. Reference

[1] Chen, S., Zhou, Y., Chen, Y., & Gu, J. (2018). fastp: an ultra-fast all-in-one FASTQ preprocessor. Bioinformatics, 34(17), i884-i890. https://doi.org/10.1093/bioinformatics/bty560

[2] Langmead, B., & Salzberg, S. L. (2012). Fast gapped-read alignment with Bowtie 2. Nature Methods, 9(4), 357-359. https://doi.org/10.1038/nmeth.1923

[3] Zhang, Y., Liu, T., Meyer, C. A., Eeckhoute, J., Johnson, D. S., & Bernstein, B. E. (2008). Modelbased analysis of ChIP-Seq (MACS). Genome Biology, 9(9), R137. https://doi.org/10.1186/gb-2008-9-9- r137

[4] Bailey, T. L., & Elkan, C. (1994). Fitting a mixture model by Expectation Maximization to discover motifs in biopolymer sequences. Proceedings of the International Conference on Intelligent Systems for Molecular Biology, 28-36.

[5] Yu, G., Wang, L. G., & He, Q. Y. (2015). ChIPseeker: an R/Bioconductor package for ChIP peak annotation, comparison and visualization. Bioinformatics, 31(14), 2382-2383. https://doi.org/10.1093/bioinformatics/btv145
