ASO/siRNA Nucleic Acid Drug Development and Safety Assessment Solutions

ASO/siRNA Nucleic Acid Drug Development and Safety Assessment Solutions

ASO siRNA Nucleic Acid Drug Development and Safety Assessment Solutions

ASO/siRNA Nucleic Acid Drug Development and Safety Assessment Solutions

1. Industry Background and Regulatory Requirements

Antisense oligonucleotides (ASOs) and small interfering RNAs (siRNAs), as next-generation precision nucleic acid therapeutics, achieve precise regulation at the gene expression level through sequence-specific recognition of target RNAs. They have become an important therapeutic modality for rare diseases, genetic disorders, neurodegenerative diseases, and metabolic diseases. ASOs primarily exert their effects through RNase H-mediated mRNA degradation or steric hindrance; siRNAs rely on RNA-induced silencing complex (RISC)-mediated cleavage of target mRNA, offering enhanced targeting specificity. Compared with traditional small molecule and antibody drugs, nucleic acid drugs offer significant advantages including broad target coverage, shorter design cycles, and customizable sequences, enabling the development of therapeutic strategies for targets that are difficult to address with conventional drugs. They have established an important strategic position in global biopharmaceutical R&D pipelines.

As multiple ASO and siRNA drugs have successively received regulatory approval worldwide—covering indications such as spinal muscular atrophy, hereditary transthyretin amyloidosis, acute hepatic porphyria, and hypercholesterolemia—the clinical value and commercial viability of nucleic acid drugs have been fully validated. Meanwhile, the global nucleic acid drug R&D pipeline continues to expand, with a large number of candidate molecules entering preclinical and clinical development stages. The market outlook is highly promising, making this one of the most growth-driven segments in the biopharmaceutical field.

However, the success rate of nucleic acid drug development is highly dependent on precise sequence design and comprehensive safety assessment. The safety risks of ASO/siRNA arise from two dimensions: the first is sequence-dependent (hybridization-dependent) off-target effects—due to high sequence similarity, drugs may undergo unintended hybridization with non-target genes, triggering hybridization-dependent off-target effects and causing aberrant expression of non-target genes, which is a major source of preclinical toxicity signals; the second is sequence-independent effects—including class effects associated with ASOs such as complement activation and coagulation interference, immune stimulation triggered by siRNAs via innate immune receptors such as TLR7/TLR8, as well as the immunogenicity risk of sequences containing unmodified CpG motifs. Major regulatory agencies worldwide (ICH, FDA, EMA, PMDA, CDE) and the Oligonucleotide Safety Working Group (OSWG) have successively issued dedicated technical guidelines, setting clear and systematic requirements for nucleic acid drug safety assessment.

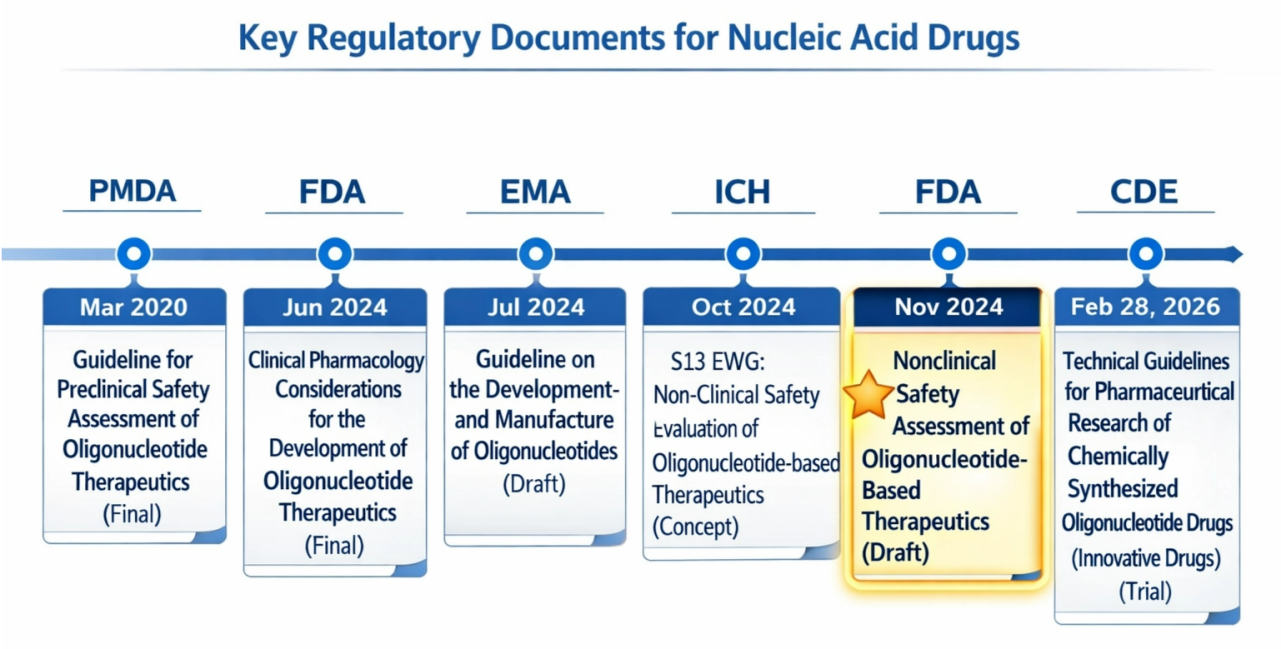

Figure 1. Global Regulatory Document Timeline for Nucleic Acid Drugs

The FDA's November 2024 draft guidance, Nonclinical Safety Assessment of Oligonucleotide-Based Therapeutics, explicitly requires that prior to IND submission, comprehensive hybridization-dependent off-target assessments covering the transcriptome, nuclear genome, and mitochondrial genome must be conducted for candidate sequences and their metabolites, combined with cross-analysis of RNA-seq transcriptomic experimental validation and computational prediction. ICH, PMDA, EMA, and the OSWG have also set out systematic normative requirements regarding sequence design justification, off-target risk stratification, and experimental method selection in their respective documents. China's CDE similarly requires that IND submissions for nucleic acid drugs include a complete chain of safety assessment data. Systematic and standardized safety assessment has become a critical prerequisite for the successful advancement of nucleic acid drug IND submissions.

2. Industry Status and Core Challenges

Despite the sustained growth in nucleic acid drug R&D, companies commonly face three core challenges when advancing ASO/siRNA candidate molecules toward IND submission:

StageCurrent StatusCore Challenges
Early Development StageNucleic acid drug development pathways are long and milestone-intensive. From target identification to candidate sequence selection, multiple critical steps are involved including computational design, chemical synthesis, and in vitro activity screening, with insufficient integration between stages.
  • Target design lacks systematic standardization, leaving off-target risks inadequately anticipated at the sequence design stage
  • Chemical modification strategy selection lacks evidence basis, affecting the drug-like potential assessment of candidate sequences
  • The in vitro screening and validation system is incomplete, resulting in a large number of candidates being eliminated at late stages due to insufficient overall performance, wasting resources
Safety Assessment StageOff-target assessment is a mandatory component of nucleic acid drug IND submissions, involving computational prediction, transcriptomic experimental validation, quantitative confirmation, and other technology platforms. Services are fragmented, data standards are inconsistent, and cross-analysis is difficult to achieve.
  • ASO and siRNA have different off-target mechanisms, requiring differentiated assessment protocols; generic protocols can create assessment blind spots
  • Computational prediction and RNA-seq experimental results are siloed, lacking a systematic cross-validation framework
  • RT-qPCR quantitative validation lacks standardized SOPs, resulting in high risks of false-positives and false-negatives
IND Submission StageRegulatory agencies require a complete chain of evidence from sequence design justification to safety assessment. Companies generally lack integrated service providers capable of spanning the entire R&D continuum and generating submission-ready reports.
  • Collaboration with multiple vendors leads to inconsistent data formats, making integration of submission materials difficult and time-consuming
  • Data traceability across different stages is poor, making it difficult to form a logically coherent safety assessment evidence chain
  • There is a lack of experienced teams with dual FDA/CDE submission experience to provide submission strategy guidance

3. End-to-End Solutions

In response to the above challenges, ZhuHai GeneRulor has built an integrated end-to-end service platform covering the entire continuum from target design to IND submission for ASO/siRNA nucleic acid drugs. The platform integrates four core capabilities: computational-assisted design, chemical synthesis, in vitro screening and validation, and safety assessment. Services are delivered in a modular format—modules can be selected independently or combined as a complete package—strictly adhering to the latest FDA 2024 guidance and OSWG industry consensus to ensure the systematicity, traceability, and regulatory compliance of data throughout the entire workflow.

The overall technical approach follows a progressive logic of Design → Synthesis → Screening → Safety Assessment → Submission, with each stage verifying and building upon the last, constructing a comprehensive R&D and safety evidence chain for every candidate molecule.

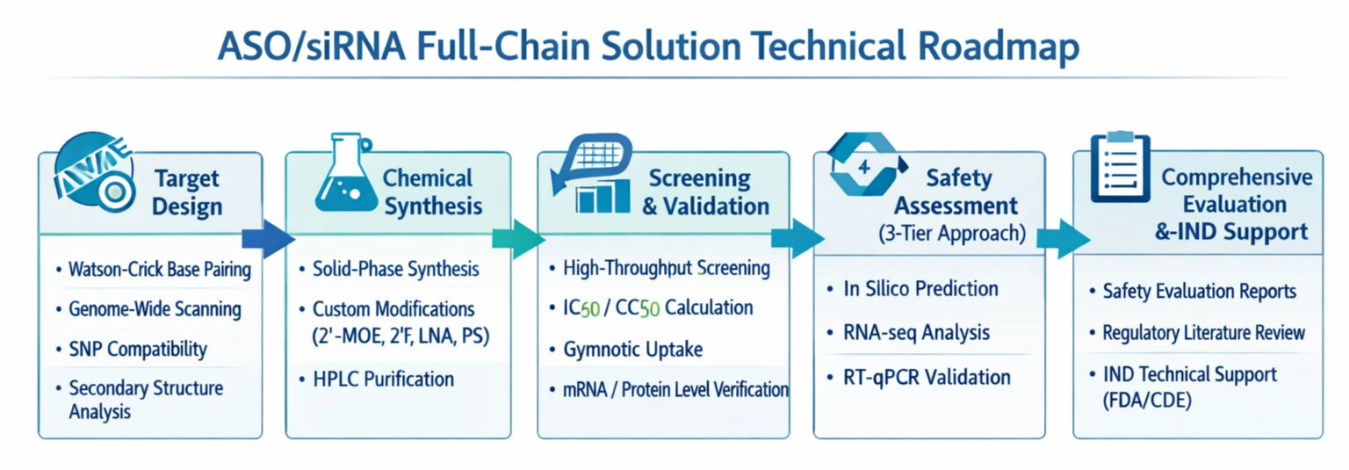

Figure 2. Technical Roadmap of the End-to-End ASO/siRNA Nucleic Acid Drug Solution

3.1 Core Service Module Details

Module 1: Target Design and Sequence Optimization

Precise target design is the starting point for successful ASO/siRNA drug development. This module applies multi-dimensional sequence feature analysis based on Watson-Crick base-pairing principles, systematically screening optimal target sites across the entire genome to provide a high-quality starting point for candidate sequences entering the synthesis and validation stages.

The design workflow proceeds in three progressive phases:

PhaseCore StrategyKey Technologies
Phase 1: Candidate Target ScreeningGenerate candidate sequence libraries from functional regions of mRNA and pre-mRNA
  • Systematic scanning of exonic/intronic/UTR regions
  • Basic filtering by sequence length, GC content, and thermodynamic parameters
  • Rapid construction of preliminary candidate sequence pool (ASO: 50+ sequences, siRNA: 30–50 sequences)
Phase 2: Sequence Quality OptimizationMulti-dimensional sequence quality assessment and comprehensive scoring-based ranking
  • Off-target risk assessment (genome-wide sequence homology alignment)
  • SNP compatibility screening (exclusion of sequences covering high-frequency variant positions)
  • RNA secondary structure accessibility analysis (prioritization of single-stranded open regions)
  • RNase H cleavage efficiency prediction (ASO) / RISC loading efficiency assessment (siRNA)
Phase 3: Modification Strategy RecommendationProvide targeted chemical modification strategies based on sequence characteristics
  • Gapmer structural optimization (ASO, RNase H-dependent)
  • Fully-modified high-stability backbone (splice-switching ASO)
  • Asymmetric modification of siRNA duplexes, CpG motif immunogenicity management
  • Modification types encompassing 2'-MOE, 2'-F, LNA, PS backbone modifications, and others

*Deliverables: Comprehensive scoring and ranking table for Top 30 candidate sequences (including target location, GC content, RNA structure score, RNase H/RISC efficiency score, and SNP information); chemical modification strategy recommendations for Top 5 sequences; CpG motif risk assessment report; complete sequence design analysis report (PDF). Timeline: 10 business days.

Module 2: Chemical Synthesis and Quality Control

High-quality chemical synthesis is the material foundation for in vitro validation of candidate molecules. This module employs established solid-phase synthesis (SPS) technology, supports multiple chemical modification types, provides custom synthesis services from small to medium scale, and is equipped with a rigorous quality control system.

Modification TypesSynthesis SpecificationsQuality StandardsApplication Scenarios
  • 2'-MOE (classical gapmer)
  • 2'-F modification
  • LNA (high-affinity modification)
  • PS backbone modification
  • Standard and modified siRNA synthesis
  • Custom modifications (PNA, PMO, etc.)
  • 5 nmol (early screening)
  • 10 nmol (preliminary validation)
  • 50 nmol (cell-based experiments)
  • 200 nmol (in vivo studies)
  • 200 nmol HPLC-purified (high-purity requirements)
  • RP-HPLC purification, purity ≥90%
  • MS molecular weight confirmation
  • Complete QC test report
  • Product usage instructions and storage recommendations
  • Early screening of candidate sequences
  • In vitro activity and cytotoxicity validation
  • Sample preparation for off-target assessment
  • Batch preparation for IND submission

*Deliverables: Synthesized products (specified specifications). Timeline: 15 business days.

Module 3: In Vitro Screening and Validation

This module employs a phased funnel strategy of Design → Synthesis → Screening → Optimization → Confirmation to systematically identify Lead molecules with clinical translation potential from a large pool of candidates, balancing high-throughput efficiency with multi-dimensional quality assessment.

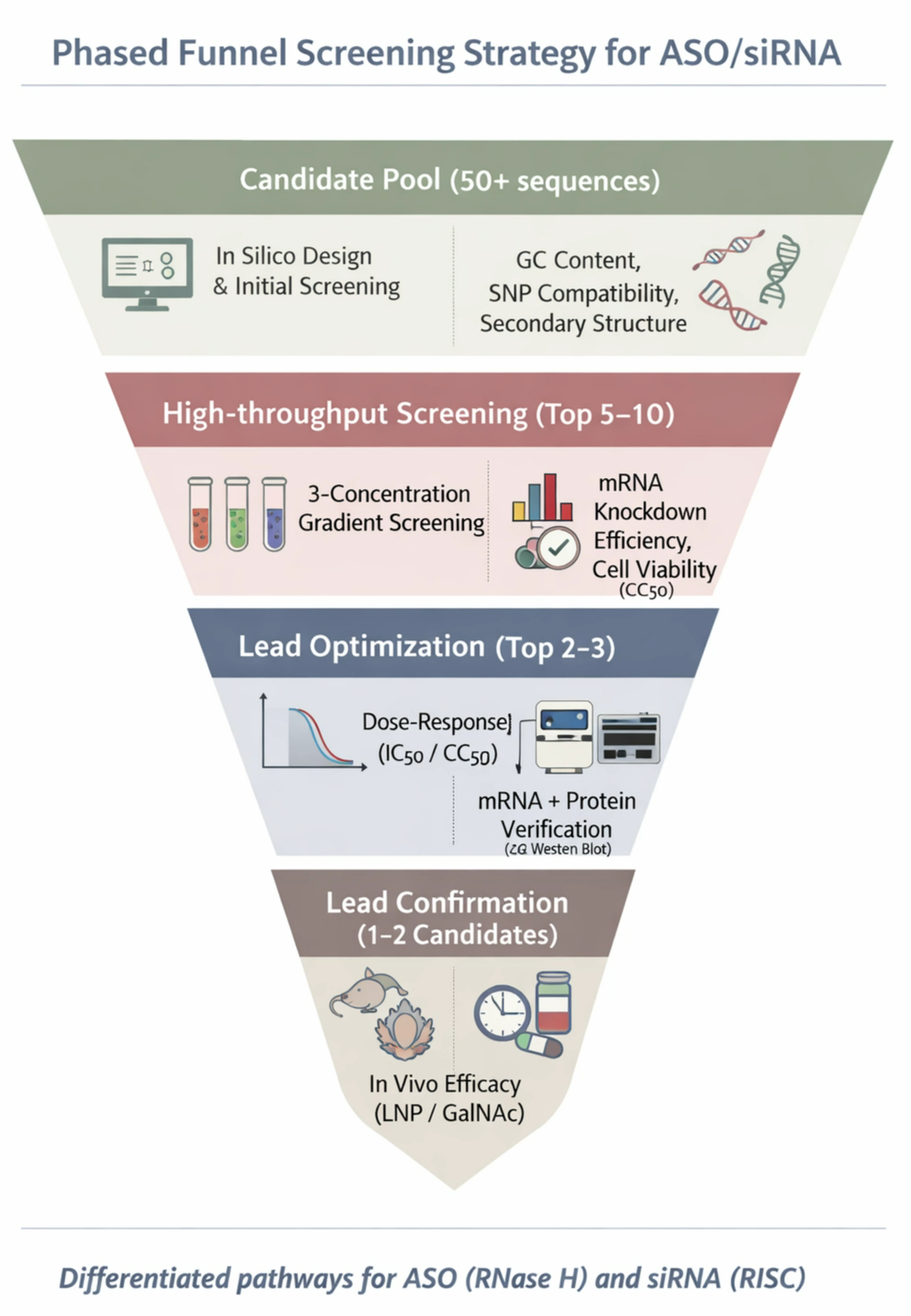

Figure 3. Schematic of the Phased Funnel-Based Screening Strategy
Screening PhaseCore MethodsAssessment Dimensions
① High-Throughput Primary ScreeningRapid screening with three-concentration gradient, heatmap visualization with comprehensive scoring
  • mRNA knockdown efficiency
  • Cell viability (preliminary CC50 assessment)
  • Preliminary off-target risk assessment (siRNA-specific)
② Lead OptimizationFull dose-response relationship validation (4PL model to calculate IC50/CC50)
  • Dual validation at mRNA and protein levels (qPCR + Western Blot)
  • Precise calculation of therapeutic window (IC50/CC50)
  • siRNA: passenger strand off-target assessment, immunogenicity testing
③ Lead ConfirmationSimulate in vivo delivery environment to predict in vivo efficacy
  • ASO: gymnotic uptake validation (delivery efficiency without transfection agents)
  • siRNA: LNP formulation screening / GalNAc conjugate potency validation
  • Extended duration validation (96–120 h) to predict in vivo dosing intervals

*Complete workflow timeline: 8–12 weeks (excluding synthesis time); supports ASO-specific (6–10 weeks), siRNA-specific (6–10 weeks), and modular custom services.

Module 4: Safety Assessment—Off-Target Detection System (Core)

This module is the core of the ASO/siRNA IND submission safety data package. ZhuHai GeneRulor employs a three-tiered progressive strategy—computational prediction → transcriptomic experimental validation → quantitative confirmation—with differentiated assessment protocols designed for the distinct off-target mechanisms of ASO and siRNA, constructing a complete hybridization-dependent off-target risk assessment evidence chain that fully meets the technical requirements of the FDA 2024 guidance and OSWG consensus.

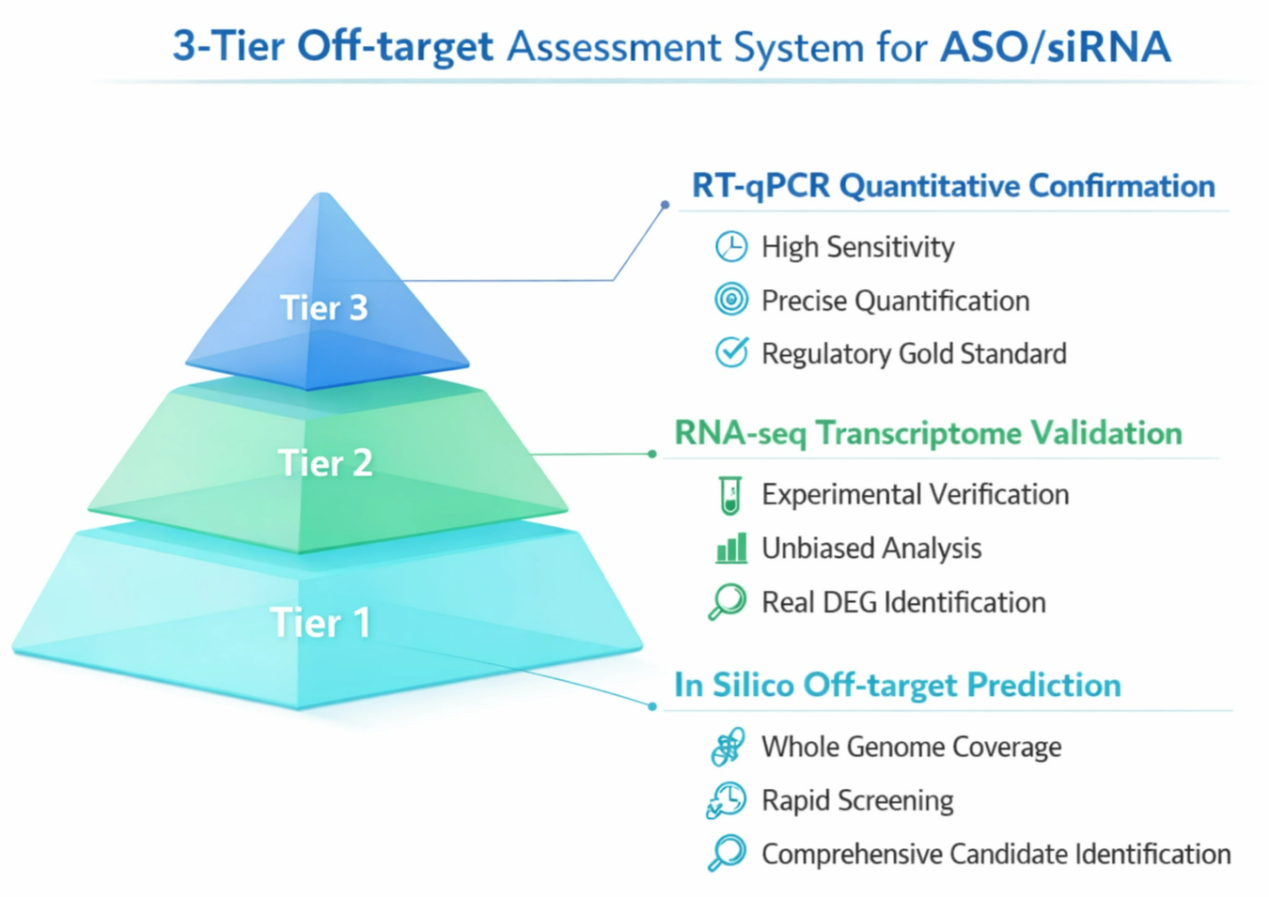

Figure 4. Schematic of the Three-Tiered Progressive Off-Target Assessment Strategy (Prediction – Validation – Confirmation)

The three tiers of assessment can be conducted independently or in combination—computational prediction provides candidate site targeting references for experimental validation; RNA-seq achieves unbiased whole-transcriptome coverage; and RT-qPCR provides high-confidence quantitative confirmation. Cross-validation among the three tiers significantly reduces false-positive rates, ensuring the scientific rigor and regulatory acceptability of off-target assessment conclusions.

Assessment TierTechnical MethodCore ContentData Output
Tier 1: Computational Off-Target PredictionGenome-wide sequence alignment algorithmsFull coverage of the complete drug sequence and its in vivo metabolites, with comprehensive scanning across three layers—transcriptome, nuclear genome, and mitochondrial genome; integration of tissue expression data, essential gene LOEUF scores, and disease databases to establish a three-tier risk stratification system (high/medium/low); GO/KEGG functional enrichment analysis to elucidate potential biological risks
  • High-risk off-target site list
  • Risk stratification report
  • Functional enrichment visualization charts
Tier 2: RNA-seq Whole-Transcriptome ValidationHigh-throughput transcriptome sequencing (10G)mRNA enrichment library construction for siRNA; mRNA enrichment or whole transcriptome library construction for ASO (covering both nuclear and cytoplasmic off-targets); DESeq2 differential analysis combined with seed region matching (siRNA) or full-length sequence alignment (ASO), cross-validated against computational prediction results; K-S test for statistical evaluation of overall off-target effects
  • Volcano plot of differentially expressed genes
  • Off-target site identification
  • Target knockdown efficiency confirmation
  • ECDF curve
Tier 3: RT-qPCR Quantitative ConfirmationReal-time quantitative PCRIndependent quantitative validation of high-risk off-target sites identified by RNA-seq and computational prediction to eliminate false-positives; precise quantification of on-target gene knockdown efficiency; support for dose-dependent assessment and IC50 determination to provide a data foundation for safety window analysis
  • Confirmed high-risk off-target gene list
  • Dose-dependent curves
  • IC50 prediction data

Deliverables: Complete off-target prediction analysis report + RNA-seq detection report + RT-qPCR validation report + safety assessment data package compliant with IND submission requirements (PDF + Excel raw data). Service options: Supports both client-provided samples and ZhuHai GeneRulor full-process service; flexible selection of single-tier or three-tier combined assessment based on project needs.

Module 5: Integrated Evaluation and Regulatory Submission Support

Integrating all data from the first four modules, combined with literature review and regulatory background analysis, to produce a systematic, comprehensive safety assessment data package compliant with FDA/CDE requirements, providing robust scientific evidence for the nonclinical safety evaluation section of IND submissions.

Service ContentSpecific WorkDeliverables
Integrated Off-Target Safety Evaluation Report
  • Integration of all computational prediction, RNA-seq, and RT-qPCR data
  • Justification of sequence design rationale (including basis for modification strategies)
  • Integrated off-target risk stratification and safety window assessment
  • Potential toxicity mechanism analysis and risk mitigation recommendations
Comprehensive safety evaluation technical report (PDF, Chinese/English)
Regulatory Literature and Background Support
  • Systematic literature search on domestic and international research advances for target genes/targets
  • Collection of safety assessment pathway references for comparable approved drugs
  • Integration of FDA/CDE review focus areas and common issues lists
  • Background reference compilation
  • Regulatory communication strategy recommendations
Regulatory Submission Technical Support
  • Assistance with drafting nonclinical safety assessment-related sections of IND submissions
  • Data table organization and figure standardization
  • Compliance review of submission materials against FDA/CDE format requirements
Complete submission materials package compliant with regulatory requirements

4. Service Models

Service ModelApplicable ScenarioService ContentCore Deliverables
★ IND Safety Assessment Package (Recommended)Candidate sequences have been synthesized, IND submission is imminent, complete safety assessment data is required
  • Standard Package: Module 4 (computational prediction + RNA-seq + RT-qPCR)
  • Advanced Package: Standard Package + Module 5 (integrated evaluation report + submission materials support)
Complete detection report package + raw data compliant with FDA/CDE requirements
End-to-End R&D Service PackageStarting from target design, requiring end-to-end integrated serviceModules 1 through 5 full-process package service, unified data standards, dedicated project manager for end-to-end trackingFull-process data report package + IND submission materials support
Individual Technical ServicesPartial assessment already completed, specific technical services needed to supplement
  • Target design / chemical synthesis / in vitro screening and validation
  • Computational off-target prediction / RNA-seq testing
  • RT-qPCR validation / integrated evaluation report
Individual or multiple detection data reports

5. Client Value

Value DimensionTraditional Multi-Vendor ModelGeneRulor End-to-End Solution
Number of Vendors4–6 vendors (design/synthesis/screening/safety assessment/consulting dispersed)GeneRulor: 1 vendor providing integrated end-to-end service
Complete Workflow TimelineTarget to IND data package: typically 10–14 monthsGeneRulor end-to-end: 6–9 months (40–50% reduction)
Data ConsistencyDifferent platforms, inconsistent standards, cross-validation difficultUnified platform, full-process data traceability, seamless integration of computational prediction and experimental validation
Technical SupportFragmented coordination, slow response, difficult accountabilityDedicated project manager for end-to-end tracking, rapid response
Regulatory ComplianceEach vendor outputs separate reports with inconsistent quality, style, and complianceStandardized detection protocols and submission-grade reports compliant with FDA 2024 guidance and OSWG consensus; consistent report quality and style, with cross-module content linkage for integrated analysis
Submission MaterialsSelf-integration of data and report writing, high barriersSubmission materials technical support provided (Advanced Package / End-to-End Package)

6. Our Advantages

End-to-End Technical Coverage—a Rare Integrated Platform: ZhuHai GeneRulor is one of the few companies simultaneously possessing the full technical capability chain of target design → chemical synthesis → in vitro screening → off-target safety assessment, providing one-stop solutions for all core testing needs in ASO/siRNA nucleic acid drug development and IND submission, significantly reducing management costs and data risks associated with multi-vendor collaboration.

Deep Technical Expertise and Regulatory Experience in Nucleic Acid Drug Safety Assessment: ZhuHai GeneRulor has established a mature methodological system and extensive project experience in core technical areas including computational off-target prediction, RNA-seq whole-transcriptome profiling, RT-qPCR quantitative validation, and off-target risk stratification. Deeply understanding the technical requirements of the FDA 2024 guidance and OSWG consensus, ZhuHai GeneRulor has supported clients in IND submissions with outstanding performance in IND approvals in 2025.

Rigorous Quality Systems—Authoritative and Reliable Certification: ZhuHai GeneRulor operates a 3,000 m² GMP R&D laboratory and production facility, with dual ISO 9001 and CNAS certification, and is currently pursuing CMA and US CAP accreditation. Over 50 validated detection methodologies are implemented under standardized SOPs to ensure accuracy, reproducibility, and traceability of detection results, meeting the latest regulatory requirements of both FDA and CDE.

Flexible Service Models—Customized Responses to Client Needs: ZhuHai GeneRulor supports flexible combinations of comprehensive packages and individual services, with expedited channels available. Customized solutions can be tailored according to specific client needs and budgets. A dedicated project manager provides end-to-end tracking and rapid response, ensuring efficient project execution and on-time delivery, with overall project timelines shortened by 40–50% compared with traditional multi-vendor models.

7. References

[1] U.S. Food and Drug Administration. Nonclinical Safety Assessment of Oligonucleotide-Based Therapeutics Guidance for Industry. Draft Guidance. November 2024.

[2] Andersson P, et al. Assessing Hybridization-Dependent Off-Target Risk for Therapeutic Oligonucleotides: Updated Industry Recommendations. Nucleic Acid Ther. 2024.

[3] Yoshida T, et al. Evaluation of off-target effects of gapmer antisense oligonucleotides using human cells. Genes Cells. 2019; 24(11):827-835.

[4] Goyenvalle A, et al. Considerations in the preclinical assessment of the safety of antisense oligonucleotides. Nucleic Acid Ther. 2023; 33(1):1-16.

[5] Kamola PJ, et al. In silico and in vitro evaluation of exonic and intronic off-target effects form a critical element of therapeutic ASO gapmer optimization. Nucleic Acids Res. 2015; 43(18):8638-8650.

[6] Lindow M, et al. Assessing unintended hybridization-induced biological effects of oligonucleotides. Nat Biotechnol. 2012; 30(10):920-923.

[7] Aartsma-Rus A, et al. Consensus Guidelines for the Design and In Vitro Preclinical Efficacy Testing N-of-1 Exon Skipping Antisense Oligonucleotides. Nucleic Acid Ther. 2023; 33(1):17-25.

[8] Adams D, et al. Patisiran, an RNAi Therapeutic, for Hereditary Transthyretin Amyloidosis. N Engl J Med. 2018; 379(1):11-21.

[9] Finkel RS, et al. Nusinersen versus Sham Control in Infantile-Onset Spinal Muscular Atrophy. N Engl J Med. 2017; 377(18):1723-1732.

[10] Ray KK, et al. Two Phase 3 Trials of Inclisiran in Patients with Elevated LDL Cholesterol. N Engl J Med. 2020; 382(16):1507-1519.
