MS2-p65-HSF1-mCherry Transcriptional Activation Helper Protein
Product Introduction

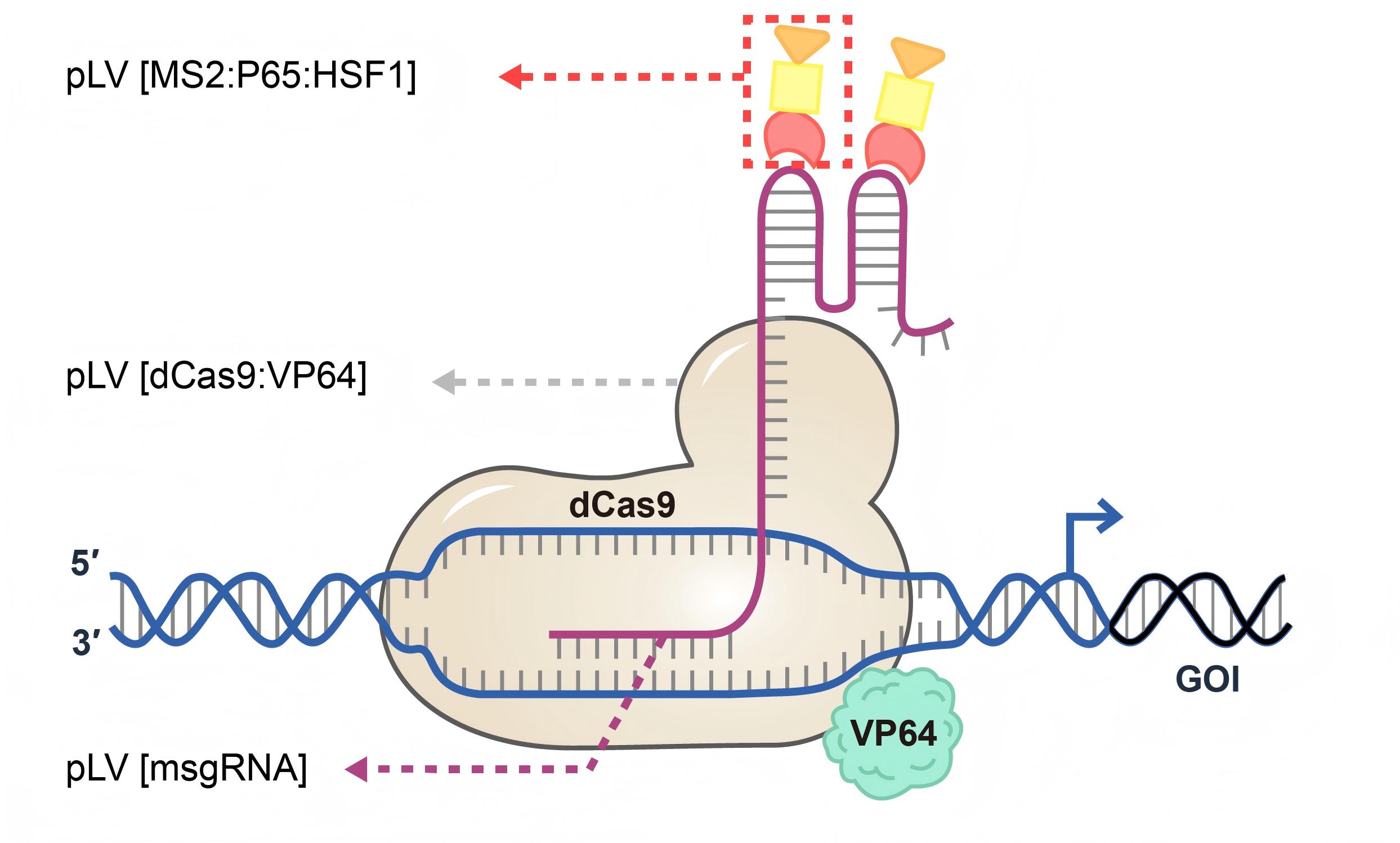

MS2-p65-HSF1-mCherry is a key auxiliary protein component within the Synergistic Activation Mediator (SAM) CRISPRa system. Built upon the MS2-p65-HSF1 framework, it incorporates the mCherry red fluorescent protein, achieving the dual functionality of potent transcriptional activation and real-time visualization tracking. This fusion protein consists of three parts: the MS2 phage coat protein, responsible for specifically recognizing MS2 aptamer sequences within RNA stem-loops; the NF-κB p65 activation domain and the Heat Shock Factor 1 (HSF1) activation domain, which provide two independent and potent transcriptional activation modules; and mCherry, serving as a fluorescent reporter tag characterized by high brightness, excellent photostability, and a spectrum that does not overlap with GFP.
Product Specifications
Parameter | Specification |
Source | Recombinant expression in E. coli |
Molecular Weight | ~80 kDa |
Concentration | 20 μM |
Composition | MS2 + p65 + HSF1 + mCherry |
Purity | ≥95% (SDS-PAGE) |
Endotoxin | <1 EU/μg |
Storage Buffer | 20 mM HEPES-KOH, 100 mM NaCl, 0.1 mM EDTA, 0.5 mM DTT, 50% Glycerol |
Storage Conditions | Long-term storage at -80°C; short-term storage at -20°C |
Product Specifications
Specifications | Catalog Number | Concentration | Volume |
100 pmol | GR102001 | 20 μM | 5 μL |
500 pmol | GR102002 | 20 μM | 25 μL |
2500 pmol | GR102003 | 20 μM | 125 μL |
Application Scenarios
Potent Gene Activation: A SAM system component enabling highly efficient gene upregulation.
Multiplex Gene Activation: Simultaneously activating multiple genes within a single cell.
Cellular Differentiation Control: Driving cell differentiation or reprogramming.
Functional Genomics: Enhanced CRISPRa screening.
HIV Latency Reactivation: Research into "shock and kill" strategies.
References
Konermann S, et al. (2015). Genome-scale transcriptional activation by an engineered CRISPR-Cas9 complex. Nature. 517(7536):583-588.
Chavez A, et al. (2016). Comparison of Cas9 activators in multiple species. Nat Methods. 13(7):563-567.
