IscB Nuclease


Product Introduction

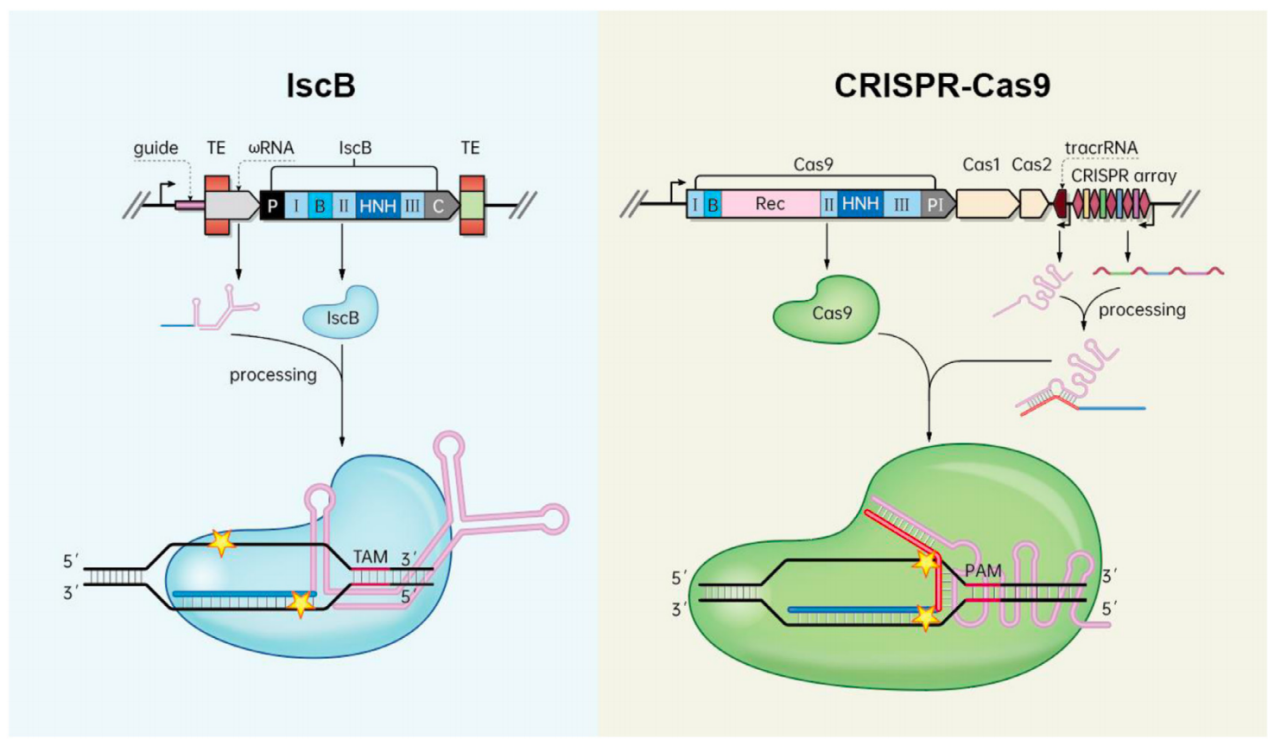

IscB (insertion sequences Cas9-like OrfB) is an RNA-guided DNA nuclease encoded within the IS200/IS605 transposon family and is considered an evolutionary ancestor of the CRISPR-Cas9 system. This protein belongs to the OMEGA (Obligate Mobile Element-Guided Activity) system family, and its discovery provides crucial insights into the molecular evolution of CRISPR-Cas systems.

The IscB protein consists of only approximately 400 amino acids, with a molecular weight significantly smaller than typical Cas9 proteins (1000-1400 aa), primarily due to the absence of the α-helical recognition lobe (REC lobe) responsible for recognition functions in Cas9. Despite its small size, IscB retains core nuclease domains similar to Cas9, including RuvC and HNH domains, which are responsible for cleaving the two strands of the DNA duplex. Additionally, IscB contains an N-terminal PLMP domain and a C-terminal TAM-interacting domain (TID).

Product Specifications

Parameter

Specification

Source

Recombinant expression in E. coli

System Type

OMEGA system

Molecular Weight

~45 kDa

Concentration

20 μM

TAM Sequence

Varies depending on IscB variant

Nuclease Domains

RuvC + HNH

ωRNA Length

~200-400 nt

Purity

≥85% (SDS-PAGE)

Endotoxin

<1 EU/μg

Storage Buffer

20 mM Tris-HCl, 500 mM NaCl, 0.1 mM EDTA, 2 mM DTT, 50% Glycerol, pH 8.0

10× Reaction Buffer

20 mM Tris-HCl, 60 mM NaCl, 10 mM MgCl₂, 0.4 mM DTT, pH 7.9

Storage Conditions

Long-term storage at -80°C; short-term storage at -20°C

Product Specifications

Specifications

Catalog Number

Concentration

Volume

100 pmol

GR101501

20 μM

5 μL

500 pmol

GR101502

20 μM

25 μL

2500 pmol

GR101503

20 μM

125 μL

Application Scenarios

Development of Ultra-Compact Gene Editors: Serving as a starting point for developing compact editing tools.

Evolutionary Studies: Investigating the evolutionary origins of CRISPR systems.

Novel Delivery Strategies: Small size suitable for various delivery systems.

Basic Mechanism Research: Structure-function relationships of RNA-guided nucleases.

Biotechnology Tool Development: Engineering modifications to optimize editing performance.

References

Altae-Tran H, et al. (2021). The widespread IS200/IS605 transposon family encodes diverse programmable RNA-guided endonucleases. Science. 374(6563):57-65.

Kato K, et al. (2022). Structure of the IscB–ωRNA ribonucleoprotein complex, the likely ancestor of CRISPR-Cas9. Nat Commun. 13:6719.

Schuler G, et al. (2022). Structural basis for RNA-guided DNA cleavage by IscB-ωRNA and mechanistic comparison with Cas9. Science. 376(6600):1476-1481.
